Spare Parts Manufacturing

Access to the right spare part at the right time is essential for maintaining uninterrupted operation of industrial machinery.

Especially in older machines, the unavailability of original spare parts, long delivery times, or discontinued manufacturer support can lead to serious production losses.

AFN Makina manufactures spare parts for cable production machinery and industrial equipment, helping existing machines continue operating reliably and efficiently.

Custom mechanical parts can be manufactured according to technical drawings, existing samples, or measurements taken directly from the machine.

Cable Machinery Spare Parts Manufacturing

Cable production machinery contains many mechanical components that are naturally exposed to wear due to high rotational speeds, continuous operation, mechanical loads, and repetitive movements.

Components that may require maintenance, refurbishment, or replacement over time include:

  • Shafts

  • Bearing housings

  • Bushings

  • Rollers

  • Drums

  • Couplings

  • Flanges

  • Hubs

  • Gears

  • Pulleys

  • Guide components

  • Reel handling systems

  • Transmission components

AFN Makina can develop and manufacture custom spare parts for cable machinery by considering both the machine design and the cable production process.

Which Cable Machines Can Spare Parts Be Manufactured For?

Depending on the technical design of the machine and the required component, custom spare parts can be produced for different types of cable production machinery.

Buncher Machine Spare Parts

Buncher machines include rotating systems operating at high speeds.

Depending on technical requirements, spare parts can be manufactured for:

  • Shafts

  • Bearing components

  • Bushings

  • Flanges

  • Reel connection components

  • Guide parts

  • Mechanical connection elements

  • Rotating system components

Single Twist Machine Spare Parts

Rotating mechanisms, reel handling systems, and transmission components in Single Twist machines can be exposed to intensive mechanical operating conditions.

When necessary, existing parts can be measured or reproduced according to technical drawings.

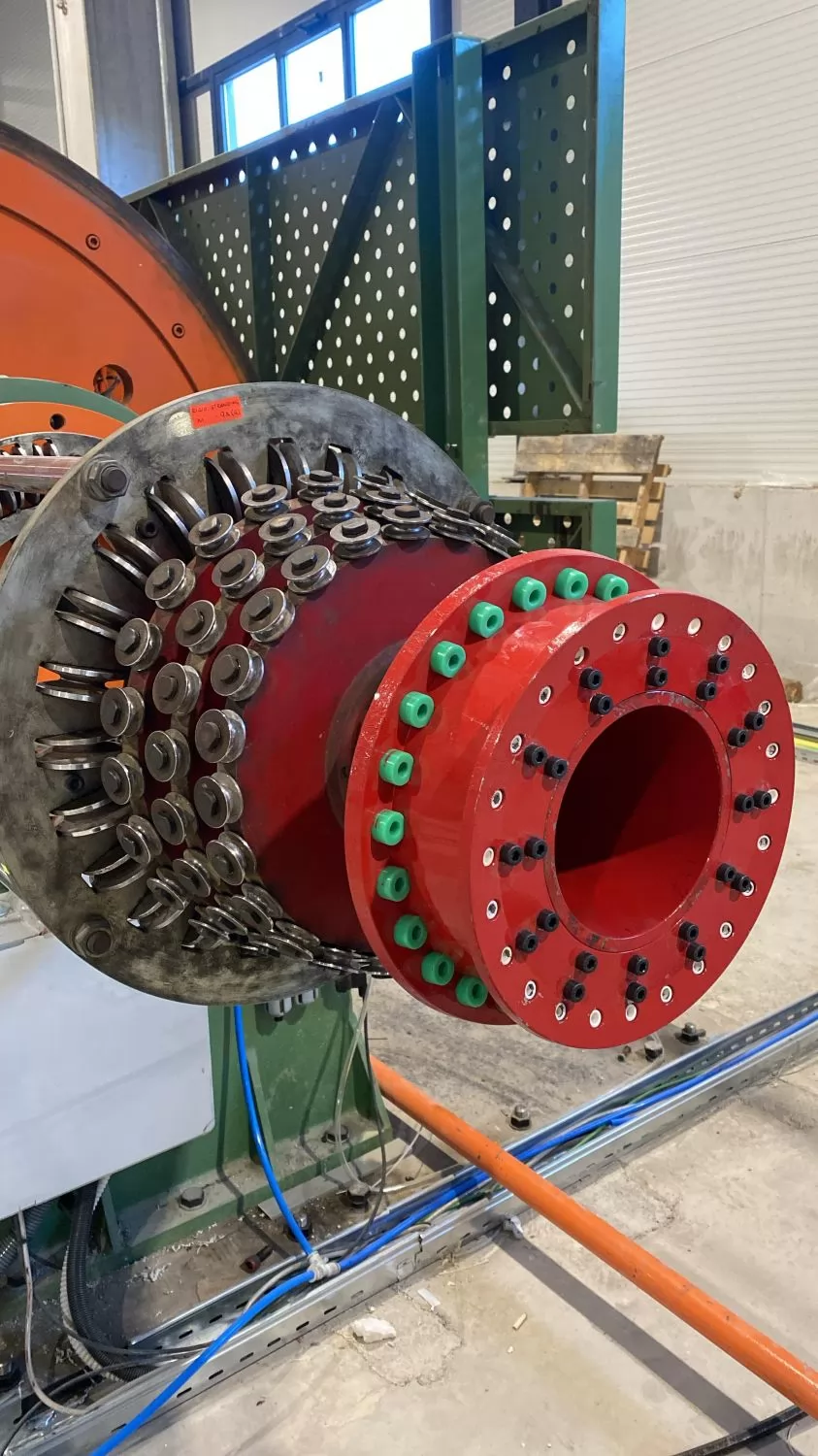

Rigid Stranding Line Spare Parts

Rigid Stranding Lines contain many mechanical components operating together as one system.

Custom spare parts may include:

  • Cage components

  • Reel carriers

  • Shafts

  • Bushings

  • Bearing components

  • Brake system components

  • Guide elements

  • Transmission parts

Drum Twister Spare Parts

Drum Twister systems operate under significant mechanical loads, making the use of durable and accurately manufactured components essential.

Drum system components, bearing parts, connection elements, rollers, and other custom mechanical components can be reproduced according to the existing equipment.

Screening and Armoring Machine Spare Parts

Mechanical parts belonging to wire feeding, reel handling, guiding, and rotating systems in cable screening and armoring lines may wear over time.

Custom mechanical components for these systems can be manufactured according to samples or technical drawings.

Taping Machine Spare Parts

Taping machines include high-speed rotating heads and material guiding systems that require precise mechanical components.

Worn or damaged parts can be reproduced according to the required technical dimensions.

Caterpillar and Capstan Spare Parts

Mechanical components used in Caterpillar and Capstan systems are exposed to pulling forces during cable production.

Depending on the project, spare parts may include:

  • Shafts

  • Pulleys

  • Bearing housings

  • Hubs

  • Flanges

  • Connection components

  • Custom mechanical parts

Pay-Off and Take-Up Spare Parts

Reel handling and rotating mechanisms used in Pay-Off and Take-Up systems operate under continuous mechanical loads.

Custom parts can be manufactured for:

  • Mechanical connections

  • Shafts

  • Bearing systems

  • Reel holders

  • Reel handling mechanisms

  • Other special mechanical components

Industrial Machine Spare Parts Manufacturing

AFN Makina spare parts manufacturing is not limited to replacing standard components.

Industrial machine parts that are unavailable on the market, manufactured in custom dimensions, or no longer produced can also be reproduced.

This is particularly important for keeping older machinery in operation.

Even if the original machine manufacturer is no longer operating or supporting the machine model, an alternative manufacturing solution can often be developed by analyzing the geometry, dimensions, and operating conditions of the existing component.

Spare Parts Manufacturing According to Technical Drawings

If a technical drawing of the required spare part is available, manufacturing can be carried out according to the documented specifications.

The following parameters can be evaluated from the technical drawing:

  • Dimensions

  • Tolerances

  • Material

  • Surface quality

  • Connection points

  • Machining details

The appropriate manufacturing method is then selected.

This approach is particularly important for machine components requiring precise tolerances.

Spare Parts Manufacturing from Existing Samples

Technical drawings may not always be available for older machinery.

In such cases, an existing worn or damaged component can be used as a sample.

The following characteristics can be analyzed:

  • Dimensions

  • Geometry

  • Connection surfaces

  • Hole centers

  • Shaft diameters

  • Bearing positions

  • Operating function

The required technical information can then be created for manufacturing a replacement component.

This method is especially useful for re-manufacturing discontinued machine parts.

Custom Machine Parts Manufacturing According to Measurements

In some cases, the original part may be completely damaged or missing.

A new mechanical component can be designed by measuring the machine’s connection points and analyzing its operating system.

During this process, not only dimensions but also mechanical loads and operating conditions must be taken into consideration.

CNC Spare Parts Manufacturing

CNC machining offers significant advantages in the production of precision machine components.

Using CNC turning and CNC milling, parts with complex geometries and precise tolerances can be manufactured.

Examples of machine parts that can be produced with CNC machining include:

  • Shafts

  • Bushings

  • Flanges

  • Hubs

  • Bearing housings

  • Pins

  • Connection components

  • Rollers

  • Guide elements

  • Custom mechanical parts

Shaft Manufacturing

Shafts are among the main movement and transmission components used in many cable production machines.

A worn shaft can lead to:

  • Excessive bearing clearance

  • Vibration

  • Irregular rotation

  • Coupling problems

  • Loss of precision

The existing shaft can be technically analyzed and a new shaft can be manufactured according to the required dimensions and tolerances.

Bushing Manufacturing

Bushings are widely used in moving mechanical systems for bearing support, clearance control, and reducing wear.

Custom bushings can be manufactured in different materials and dimensions depending on machine operating conditions.

Flange and Hub Manufacturing

Flanges and hubs are important components used to connect rotating equipment to shafts and other mechanical systems.

Depending on the application, the following details can be machined accurately:

  • Shaft diameter

  • Keyway

  • Hole pattern

  • Connection diameters

  • Centering surfaces

Bearing Housing and Bearing Component Manufacturing

Dimensional accuracy of bearing systems is essential for proper bearing operation.

Worn or damaged bearing housings may cause:

  • Vibration

  • Noise

  • Reduced bearing life

  • Loss of shaft accuracy

New bearing components can be manufactured according to the required tolerances.

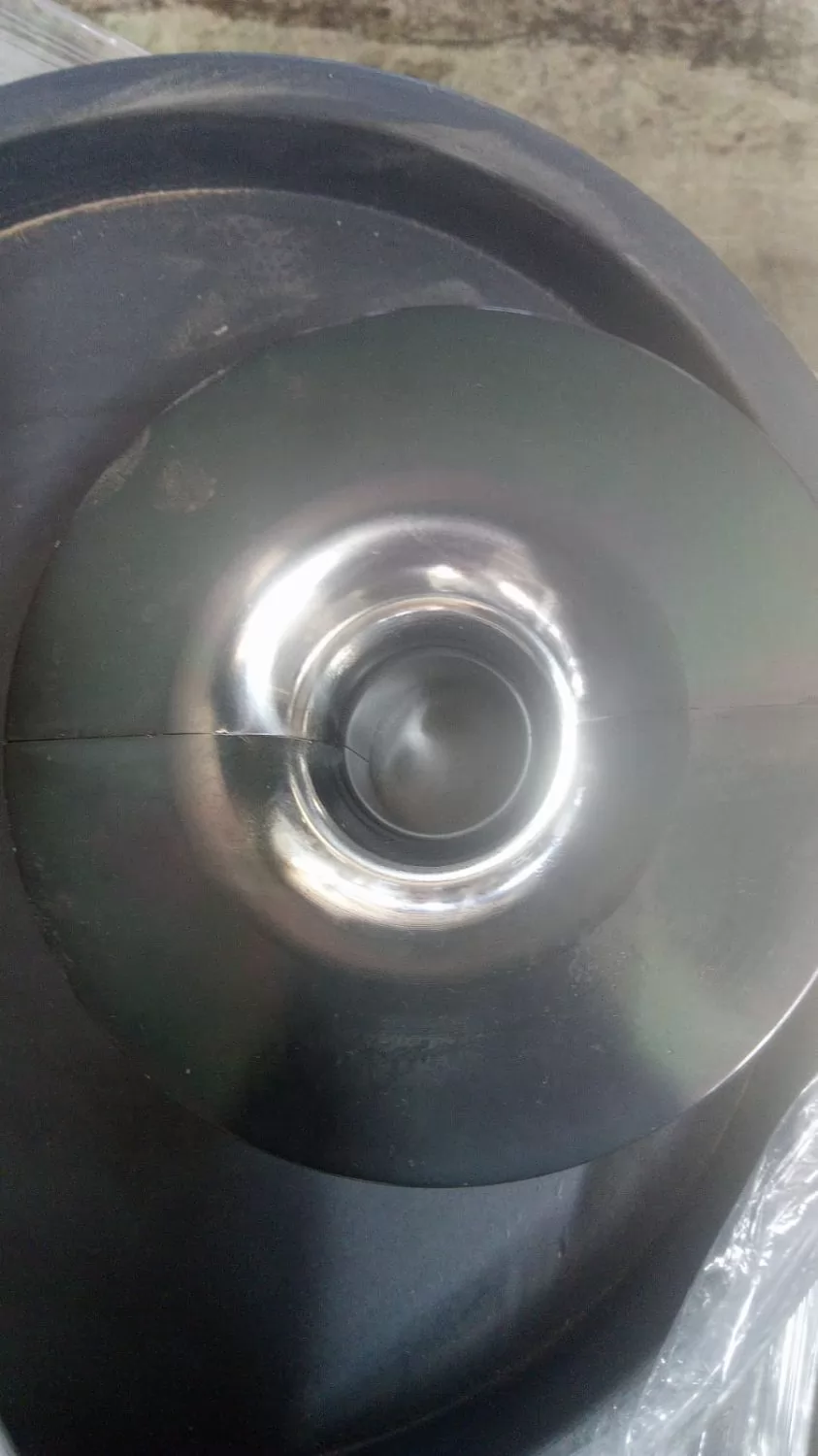

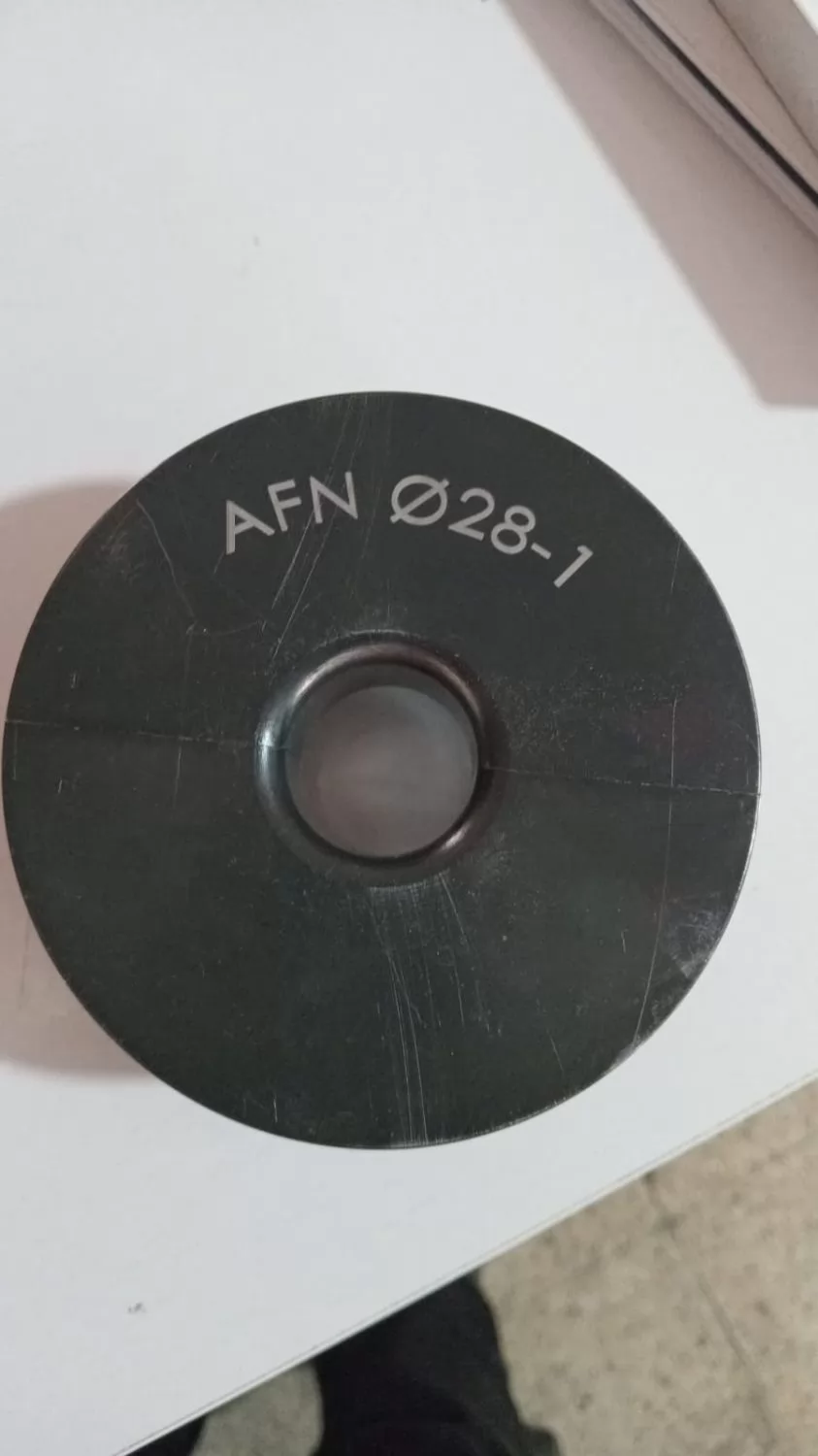

Roller and Guide Component Manufacturing

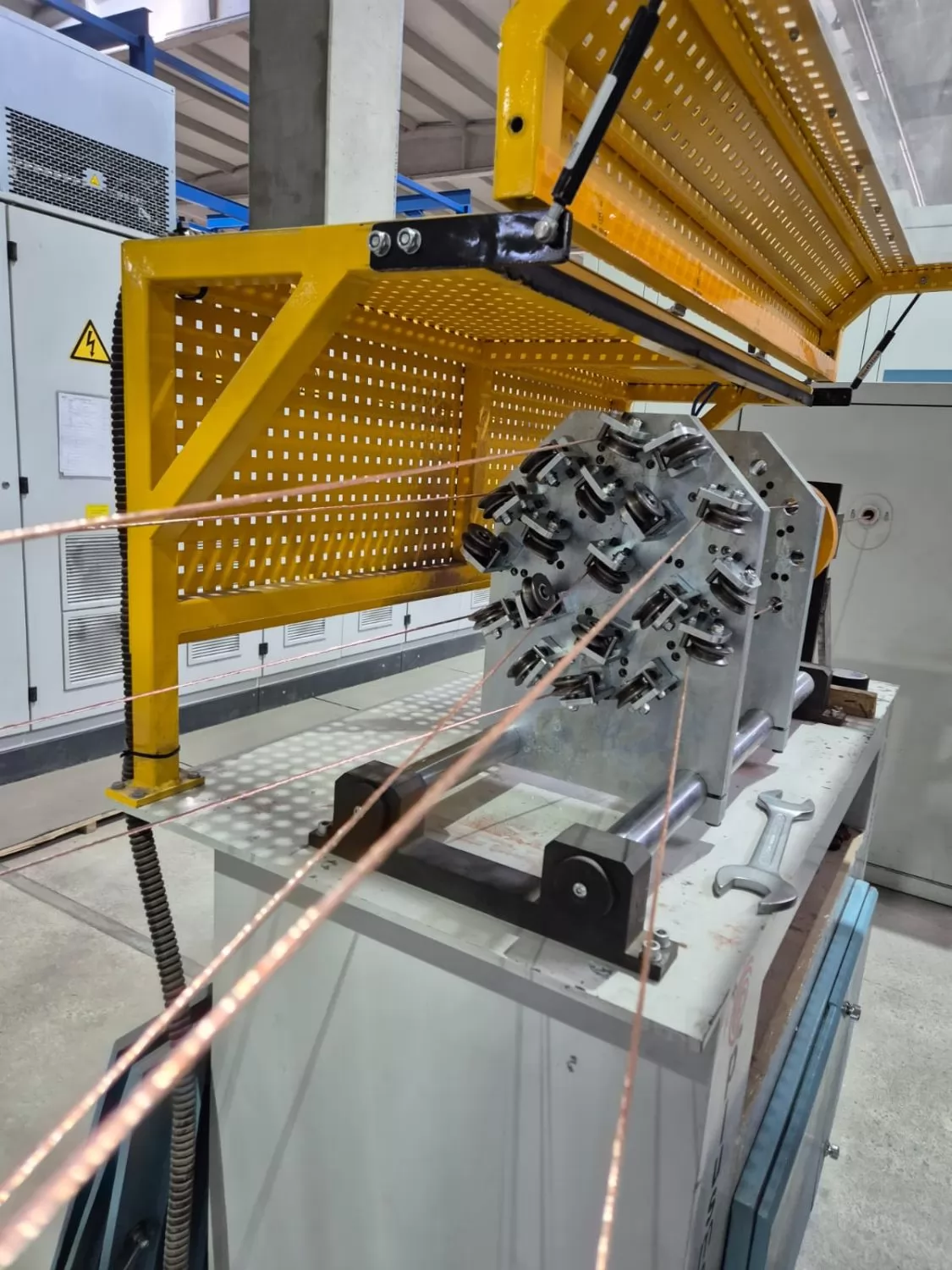

Wire and cable production lines use many rollers and guide systems to control the movement of the product.

The surface condition, dimensions, and geometry of these parts can directly affect production quality.

Custom rollers and guide components can be manufactured according to cable diameter and production process requirements.

Welded Spare Parts Manufacturing

Some machine spare parts require a combination of welded fabrication and machining rather than machining alone.

Depending on the project, the following components can be manufactured:

  • Machine connection elements

  • Supporting structures

  • Reel handling components

  • Custom brackets

  • Support elements

  • Machine body components

Importance of Material Selection

Correct dimensions alone are not enough when manufacturing machine spare parts.

The selected material must also be suitable for the operating conditions of the component.

Depending on the application, the following factors should be evaluated:

  • Mechanical strength

  • Wear resistance

  • Impact load

  • Rotational speed

  • Temperature

  • Friction

  • Corrosion conditions

Correct material selection can directly influence the service life of the spare part.

Importance of Precision Tolerances

Even small dimensional errors can affect the overall performance of high-speed cable production machinery.

Incorrect tolerances may result in:

  • Vibration

  • Balancing problems

  • Bearing failures

  • Excessive heating

  • Irregular operation

  • Reduced component life

For this reason, critical machine parts should be manufactured according to the required technical tolerances.

Spare Parts Manufacturing for Old Machinery

Many industrial facilities still operate machines that have been in service for 10, 20, or even more years.

Although their mechanical structures may remain strong, one of the main challenges with older machinery is the availability of spare parts.

The original manufacturer may:

  • Have discontinued production

  • No longer support the machine model

  • No longer stock the required component

  • Offer very long delivery times

In such cases, reproducing the existing component can help extend the service life of the machine.

Spare Parts Manufacturing and Machine Overhaul

Spare parts manufacturing is often an important part of machine overhaul projects.

During an overhaul, worn components are identified, and the required parts can be reproduced and installed back into the machine.

For example:

  • A worn shaft can be re-manufactured

  • A bearing housing can be renewed

  • A damaged bushing can be replaced

  • A roller can be manufactured

  • A flange can be reproduced

  • Connection components can be renewed

This allows older machinery to be restored to more reliable operating conditions.

Advantages of Custom Spare Parts Manufacturing

Custom spare parts manufacturing can provide several important advantages:

  • Reduced production downtime

  • Extended service life of older machinery

  • Reproduction of unavailable components

  • Alternative solutions to imported spare parts

  • Manufacturing in custom dimensions

  • Better compatibility with existing machinery

  • Easier completion of overhaul projects

  • Possibility of delaying investment in new machinery

  • Material selection according to technical requirements

  • Reproduction of critical machine components

What Information Is Required for Spare Parts Manufacturing?

Providing as much technical information as possible helps ensure accurate spare part manufacturing.

Useful information may include:

  • Technical drawing

  • Existing sample

  • Photographs of the component

  • Dimensions

  • Material information

  • Machine model

  • Location and function of the component

  • Operating speed

  • Mechanical load

  • Required quantity

If a technical drawing is unavailable, the necessary production information may be created by analyzing the existing component.

Why AFN Makina?

Manufacturing spare parts for cable machinery may require more than general machining knowledge.

It is also important to understand the role of the component within the machine, its operating speed, mechanical loads, and influence on the overall production process.

AFN Makina combines its experience in cable production machinery engineering and machine manufacturing with mechanical production capabilities to develop custom spare part solutions.

Depending on technical requirements, the process may include:

  • Component analysis

  • Measurement

  • Technical drawing

  • Material selection

  • CNC machining

  • Welded fabrication

  • Mechanical inspection

  • Assembly

  • Machine overhaul

Custom Spare Part Solutions for Cable Machinery

If a component used in your production line is no longer available, this does not necessarily mean that the complete machine must be replaced.

When technically feasible, the existing part can be analyzed and reproduced to return the machine to production.

AFN Makina can develop project-specific mechanical spare part solutions for Buncher, Single Twist, Rigid Stranding, Drum Twister, screening, armoring, taping, Caterpillar, Capstan, Pay-Off, Take-Up, and other cable production machinery.

Contact AFN Makina for custom spare parts manufacturing solutions for cable machinery and industrial equipment.

Frequently Asked Questions

Can spare parts be manufactured for cable machinery?

Yes. If a technical drawing, sample, or dimensional information is available, custom mechanical spare parts can be manufactured for different types of cable production machinery.

Can a part be manufactured without a technical drawing?

In many cases, yes. An existing component can be analyzed as a sample, measured, and used to create the technical information required for manufacturing.

Can spare parts be manufactured for old machinery?

Yes. Components for discontinued or unsupported machines can often be reproduced by analyzing the existing part.

Which machine parts can be manufactured?

Depending on project requirements, shafts, bushings, flanges, hubs, bearing housings, rollers, connection components, guide parts, and various custom mechanical components can be manufactured.

Can spare parts be manufactured using CNC machining?

Yes. CNC turning and CNC milling can be used to manufacture many mechanical components requiring precise tolerances.

Can machine parts be manufactured from samples?

Yes. The geometry and dimensions of an existing sample can be analyzed to manufacture a technically suitable replacement component.

Can Buncher machine spare parts be manufactured?

Depending on machine design, shafts, bearing components, flanges, connection parts, and other mechanical components used in Buncher systems can be manufactured.

Can Rigid Stranding Line spare parts be manufactured?

Yes. Cage components, shafts, reel carriers, bearing elements, and other custom mechanical parts used in Rigid Stranding Lines can be produced depending on project requirements.

Can Pay-Off and Take-Up parts be manufactured?

Yes. Custom parts used in reel handling, bearing, and mechanical movement systems of Pay-Off and Take-Up units can be manufactured.

How is material selected for spare parts?

Material selection should be based on mechanical load, operating speed, wear conditions, temperature, friction, and the working environment of the component.

Can spare parts manufacturing extend machine service life?

Yes. Replacing worn components with correctly manufactured parts can help improve machine reliability and extend the service life of existing equipment.

Can spare parts be manufactured during a machine overhaul?

Yes. Required components can be identified during machine overhaul, reproduced, and installed as part of the overhaul project.

We provide original, high-quality spare parts to ensure uninterrupted production. With fast delivery, reliable inventory management, and expert technical support, we help keep your production line operating at maximum efficiency.
