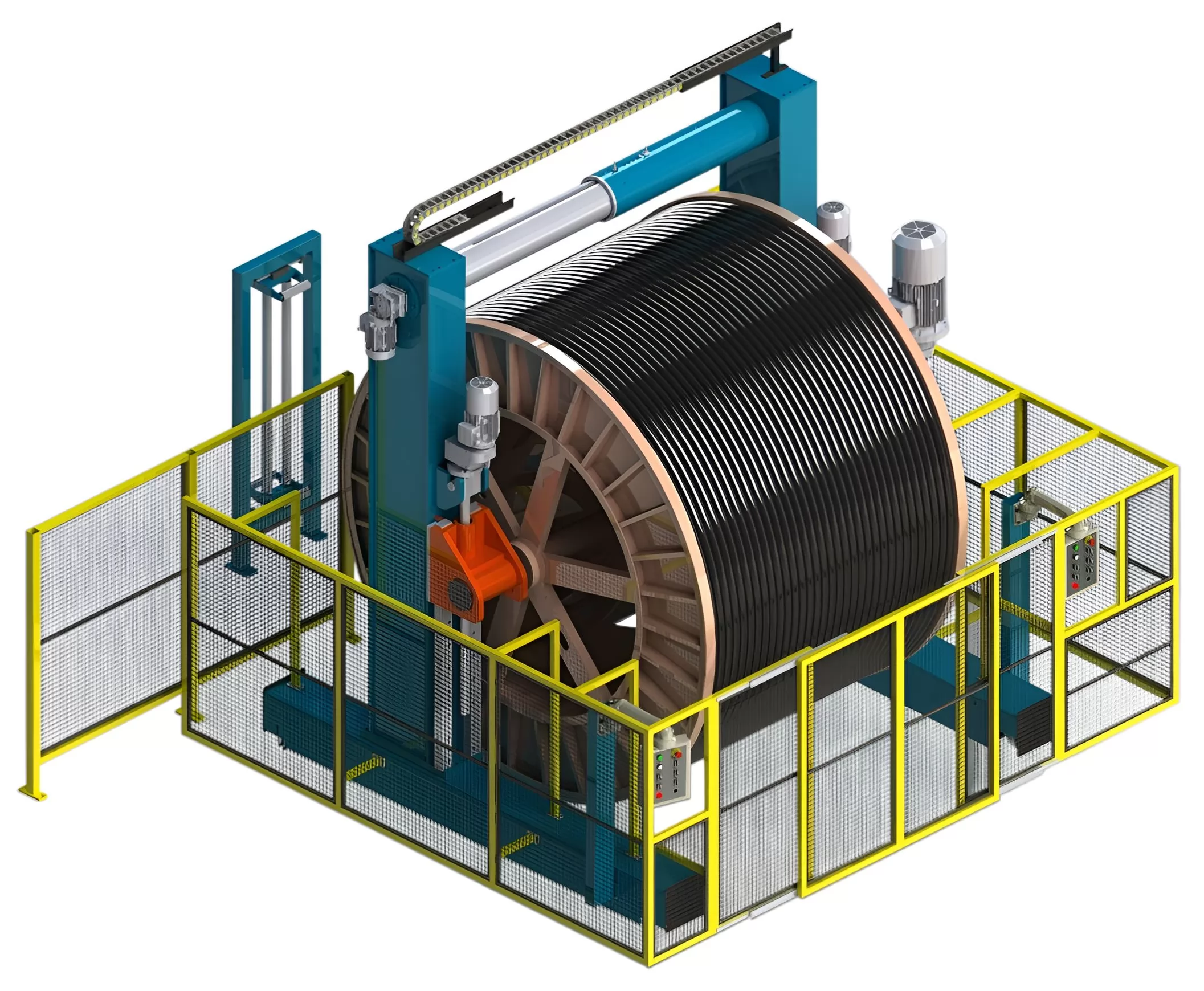

Underground Mobile Collector
Underground Mobile Collector
| YGT | Maximum Speed m/min |
Maximum Torque Nm |
Maximum Product Diameter Ø mm |
Maximum Spool Weight kg |
Minimum Connectable Spool Diameter Ø mm |
Maximum Connectable Spool Diameter Ø mm |
Minimum Connectable Spool Width mm |
|---|---|---|---|---|---|---|---|
| 2500 | 100 | 14400 | 120 | 15000 | 1000 | 2500 | 800 |
| 3000 | 100 | 14400 | 120 | 20000 | 1250 | 3000 | 920 |
| 3600 | 80 | 14400 | 120 | 25000 | 1600 | 3600 | 1130 |
| 4000 | 50 | 14400 | 120 | 30000 | 1600 | 4000 | 1130 |
